Hydraulic Cranes

Capable of moving enormous objects with graceful ease, a hydraulic crane is the king of heavy-duty hoisting. Hydraulic cranes vary in their lifting capacities, but are capable of hoisting everything from entire houses to heavy factory equipment to multi-ton bridge sections.

R. Gingerich Crane offers four types of hydraulic cranes in its rental fleet: carry-deck cranestruck cranesrough terrain cranes and all-terrain cranes.

Carry-Deck Cranes

Carry-deck cranes are typically used inside of plants or warehouses where space is an issue.  Whether used for pick-and-carry tasks or on outrigger operations, these versatile machines are the perfect solution for tight corners.

R. Gingerich Crane has the following carry-deck cranes available for manned or unmanned rental:

Broderson IC80 (9-ton)


IC 80 Industrial Carry Deck Crane

Tough, versatile, and years of dependable service all contributed to making the Broderson IC 80 the most popular compact pick and carry deck crane in the industry. Adaptable for a wide variety of industrial and maintenance applications, the IC 80 is an ideal industrial carry deck crane for your heavy lifting in constrained environments.

Capacity on Outriggers 18,000 lbs
Pick and Carry Capacity 11,700 lbs
Height 7' 3"
Width 6’ 6"
Maximum Tip Height 46' (with Boom Extension)
Maximum Horizontal Reach 40'





Manufacturer’s Website

Click Here

Downloads

Broderson IC200 (15-ton)


IC 200 Industrial Carry Deck Crane

Ideal for lifting materials that requires a compact low-profile crane that can clear overhead obstacles and maneuver in tight spaces, the Broderson IC 200 is extremely popular because of day in day out performance and versatility. Precision controls and heavy duty design to pick and carry heavy loads, coupled with the steering flexibility to maneuver in tight spaces, provide the versatile operating performance you come to expect from heavy duty Broderson Carry Deck Cranes.

Capacity on Outriggers 30,000 lbs (16,330 kg)
Pick and Carry Capacity 17,000 lbs (8,400 kg)
Self-Loading Carry Deck Capacity 17,000 lbs (centered)
Height 7’ 11" (2.41 m)
Width 7’ 10.5" (2.39 m)
Maximum Tip Height 73' (22.25 m)
Maximum Horizontal Reach 66' (20.12 m)

Manufacturer’s Website

Click Here

Downloads

Broderson IC250-3D (18-ton)


IC 250 Industrial Carry Deck Crane

Ideal for lifting materials that requires a compact low-profile crane that can clear overhead obstacles and maneuver in tight spaces, the versatile Broderson IC 250 is ideal for many industrial and maintenance applications. Precise control and a heavy duty design to pick and carry large or massive loads, coupled with the steering flexibility to maneuver in tight spaces, will provide you with years of versatile operating performance.

Capacity on Outriggers 36,000 lbs (16,330 kg)
Pick and Carry Capacity 18,500 lbs (8,400 kg)
Self-Loading Carry Deck Capacity 17,000 lbs (centered)
Height 7’ 11” (2.41 m)
Width 7’ 10” (2.39 m)
Maximum Tip Height 79’ 6” (24.23 m) (with Boom Extension)
Maximum Horizontal Reach 70’ (21.36 m) (with Boom Extension)



Manufacturer’s Website

Click Here

Downloads

Broderson IC400-B (25-ton)


IC 400 Industrial Carry Deck Crane





Capacity on Outriggers 50,000 lbs (22,700 kg)
Pick and Carry Capacity 25,000 lbs (11,340 kg)
Height 9' 11" (2.96 m)
Width 8' 6" (2.59 m)
Maximum Tip Height 99' (30.18 m) (with Boom Extension)
Maximum Horizontal Reach 90’ (27.03 m) (with Boom Extension)



Broderson’s longest reach and highest capacity carry deck crane, the IC-400 provides heavy duty capacity to take care of all your long reach light and heavy duty lifting needs. Compact Profile Factory Equipped Telematics Exclusive 3-Position Outrigger System Reliable, Durable, Easy to Use

Manufacturer’s Website

Click Here

Downloads

Truck Cranes

Designed for mobility, a truck-mounted hydraulic crane is able to travel on roads and highways.  As a result, there is no need for special equipment to transport the crane to the jobsite. Hydraulic truck cranes are considered to be the "workhorses" of the construction industry and offer excellent lifting capabilities.

R. Gingerich Crane has the following truck cranes available for manned or unmanned rental:

Terex T340-1 (40-ton)


Key Features

  • 36 t (40 USt) maximum capacity
  • 32.0 m (105 ft) maximum boom length
  • 33.5 m (110 ft) maximum tip height
  • Engine power 224 kW (300 hp)
  • Travel speeds up to 96 km/h (60 mph)
Max Capacity 40 USt / 36.3 t
Max Main Boom Length 105 ft / 32 m
Max Tip Height 147 ft / 44.8 m

Manufacturer’s Website

Click Here

Downloads

Grove TMS500E (40-ton)


The Grove TMS500E is a very capable hydraulic crane. It has a maximum lift capacity of 40 tons (36 t), a main boom max length of 95 ft. (29 m), and a max jib length of 45 ft. (14 m). It’s powered by an after-cooled and turbocharged six-cylinder Cummins ISC300 diesel engine which generates 300 hp (224 kW) and a 60 gallon (227 L) fuel tank.

Manufacturer’s Website

Click Here

Downloads

Grove TMS500-2 (40-ton)


The Grove TMS500-2 is a very capable hydraulic crane. It has a maximum lift capacity of 40 tons (36 t), a main boom max length of 95 ft and a 26-45 ft offsettable swingaway. It’s powered by a turbocharged six-cylinder Cummins ISL9 diesel engine which generates 350 hp. With a lighter gross vehicle weight from its predecessor the TMS500-2 is a lightweight truck crane that features quick set up and versatile capabilities.

Manufacturer’s Website

Click Here

Downloads

Rough Terrain Cranes

Offering both versatility and power, rough terrain (RT) hydraulic cranes are noted for their ability to travel effortlessly over uneven, off-road jobsite terrain.

R. Gingerich Crane has the following rough terrain cranes available for manned or unmanned rental:

Tadano GR150XL


GR150-XL Rough Terrain Crane

The Tadano GR-150XL is a compact rough terrain crane. Great for getting the job done where bulkier cranes can’t without compromising power. Equipped is an Eco mode system function that controls the quantity of hydraulic pump emission during crane operation in response to the amount of movement applied, thereby minimizing the fuel consumption and carbon footprint.

The GR-150XL has a max. lifting capacity of 13.6 metric tons (15 U.S. tons). The max. boom length is 23.8 m (78.7 ft) and max. lift height of 24.5 m (80.38 ft) and max. Lift height with jib extension is 30 m (98.42 ft). Composed of 6 sections and full power partially synchronized telescoping boom of rectangular box construction with 4 sheaves at the boom head. The slewing ring uses a hydraulic axial piston motor driven through a planetary slewing speed reducer that allows continuous 360˚ full-circle slewing on a ball-bearing.

The hydraulics system pump consists of 2 variable piston pumps for crane functions. A tandem gear pump for steering, slewing, and optional equipment. Powered by a carrier engine. Pump disconnect for the crane is engaged/​disengaged by a rotary switch from the operator’s cab. Outriggers come with this crane, 4 hydraulic, beam, and jack outriggers can be safely deployed asymmetrically. The AML‑C system detects extension and provides maximum lifting capacity for the surrounding area of the crane.

This crane features a turbo-charged Mitsubishi 4M50- 4 cylinder diesel engine, pushing 172 HP and the gas tank holds up to 50 gallons. With hydraulic power steering controlled by the steering wheel. 4 steering modes are available: 2 wheel front, 2 wheel rear, 4 wheel coordinated, and 4 wheel crab.

Both the crane and drive operations can be performed from one cab mounted on a rotating superstructure. Standard is a TADANO electronic Load Moment Indicator system (AML‑C), letting the operator know with indicators, warnings, and functions in real-time.

Manufacturer’s Website

Click Here

Downloads

Terex RT230 (30-ton)


The Terex RT230 Rough Terrain crane has a maximum lift capacity of 30 tons and a four-section full-power mechanically synchronized telescoping boom with a maximum length of 94 feet. Terex rough terrain cranes offer the latest in technology, hydraulics, ergonomics and design making them extremely flexible, reliable, and able to be deployed for a broad array of tasks.

Downloads

Link-Belt RTC-8040II (40-ton)


The Link-Belt RTC-8040 Rough Terrain crane has a 40 ton maximum lift capacity and 105 foot, four-section, hydraulic telescoping boom with quick reeve boom head. Incorporating optional extensions, the maximum tip height is 163 feet. It uses an exclusive Confined Area Lifting Capacity (CALC) system which allowing it to work more effectively in smaller spaces

Manufacturer’s Website

Click Here

Downloads

Link-Belt RTC-8050II (50-ton)


The Link-Belt RTC-8050 Rough Terrain crane has a 50 ton maximum lift capacity and 110 foot, four-section, hydraulic telescoping boom with quick reeve boom head. Incorporating optional extensions, the maximum tip height is 168 feet. It uses an exclusive Confined Area Lifting Capacity (CALC) system which allowing it to work more effectively in smaller spaces.

Manufacturer’s Website

Click Here

Downloads

Tadano GR-550XL

Tadano 550.jpg

The Tadano GR-550XL provides a maximum lift capacity of 50t / 55 USt and a maximum lift height of 50.3m / 165 ft. Standard features include HELLO-NET, a telematics system that supports crane management with details on operational status, position, and maintenance. It also features the AML-C system, which detects the extension width of outriggers at all four corners to offer maximum area work value. The system monitors fuel consumption during crane operations and idling; while traveling, it allows operators to optimize fuel efficiency while reducing emissions and noise levels. The ECO Mode system controls maximum engine speed, helping to reduce fuel consumption up to 40%.

  • MAX. CRANE CAPACITY 55 USt
  • MAIN BOOM LENGTH 35.1 ft – 113.9 ft
  • BOOM EXTENSION 28.9 ft x 50.0 ft
  • OUTRIGGER BASES 22.9 ft x 22.9 ft
  • HOIST LINE PULL 16,500 lbs
  • MAX RADIUS 139.0 ft
  • MAX. MAIN BOOM LENGTH 113.9 ft
  • GVW 74,850 lbs
  • DIMENSIONS 514.0 in L x 117.3 in W x 148.2 in

Manufacturer’s Website

Click Here

Downloads

Link-Belt RTC-8065II (65-ton)


The Link-Belt RTC-8065 Rough Terrain crane has a 65 ton maximum lift capacity and 115 foot, four-section, hydraulic telescoping boom with quick reeve boom head. Incorporating optional extensions, the maximum tip height is 211 feet. It uses an exclusive Confined Area Lifting Capacity (CALC) system which allowing it to work more effectively in smaller spaces.

Manufacturer’s Website

Click Here

Downloads

Tadano GR-750XL

GR750XL

The Tadano GR-750XL is a rough terrain crane with a maximum lifting capacity of 75 tons. There is a maximum boom length of 141.1 feet and a maximum jib length of 58.1 feet. The boom of the GR-750XL is a fully synchronized five section telescoping boom. Two telescoping cylinders, a retraction cable, and an extension cable make up the synchronization system. The boom head has six sheaves to increase the power and stability of the boom. The two-stage jib is a lattice type jib with cylinders that allow for easy storage on the base boom section. The jib head also has a single sheave to increase the power and stability of the jib. The outrigger system is made up of four hydraulic beam and jack outriggers. The beams are controlled independently from the cab. The 6‑cylinder engine is a Cummins QSB6.7. This Tier IV compliant engine is a direct injection diesel with a 79.2‑galgallon gas tank. The transmission system is fully automatic and comes with 8 total speeds. Four of these speeds are 4‑wheel drive, four of the speeds are 2‑wheel drive. The front suspension is mounted to the frame and the rear suspension is pivot mounted with a hydraulic lockout device. The brake system is made up of hydraulic disc brakes on each wheel. There is also an electro-pneumatic operated exhaust brake and a spring applied air release brake acing on the input shaft of the front axle.

  • MAX. CRANE CAPACITY 75 USt
  • MAIN BOOM LENGTH 36.1 ft – 141.1 ft
  • BOOM EXTENSION 33.2 ft x 58.1 ft
  • OUTRIGGER BASES 23.9 ft x 23.9 ft
  • HOIST LINE PULL 15,600 lbs
  • MAX RADIUS 158.0 ft
  • GVW 97,620 lbs

Manufacturer’s Website

Click Here

Downloads

Grove RT880E (80-ton)


The Grove RT880 rough terrain crane has a capacity of 80 tons and a 4-section full-power boom with a maximum length of 128 feet. With a MEGAFORM synchronized telescoping boom and an electronically controlled 275hp Cummins diesel engine, the RT880 has the power and reach to conquer the most demanding jobs.

Manufacturer’s Website

Click Here

Downloads

Grove RT890E (90-ton)


The Grove RT890 rough terrain crane has a capacity of 90 tons and a 5-section full-power boom with a maximum length of 142 feet. With a MEGAFORM synchronized telescoping boom and an electronically controlled 275hp Cummins diesel engine, the RT890 has the power and reach to conquer the most demanding jobs.

Manufacturer’s Website

Click Here

Downloads

Link-Belt RTC-80100II (100-ton)


The Link-Belt RTC-80100 Rough Terrain crane has a 100 ton maximum lift capacity and 150 foot, five-section, hydraulic telescoping boom with quick reeve boom head. Incorporating optional extensions, the maximum tip height is 243 feet. It uses an exclusive Confined Area Lifting Capacity (CALC) system which allowing it to work more effectively in smaller spaces.

Downloads

Link-Belt RTC-80110II (110-ton)


110 ton | 100 mt

Nominal Capacity @ Radius 110 US Tons @ 10' (100mt @ 3.05m)
Standard Boom 40'-150' (12.2-45.7m)
Telescope System Full Power
Attachment - Option 1 10'-31'-55' (3.0-9.4-16.8m) Bi-Fold
Attachment - Option 2 (1) or (2) 18' (5.5m) Lattice Extensions
Max. Tip Height 250' (76.2m)
Max. Line Pull 21,022 lbs. (93.51kN)
Max. Speed (ft per minute) 431 fpm (131.4m/min)

Key Features

  • Full power boom with market leading capacity for its class
  • Innovative 10 ft (3.0m) fly is integral to one of the on–board fly options
  • Over 25 tons (22.6mt) capacity and one–load two–line lift procedures
  • Link–Belt Pulse total crane operating system
  • Four manual offset positions of 2°, 15°, 30°, and 45°
  • Counterweight consists of modular–style counterweights for multiple transport and lift scenarios
  • Boom wear pads have Teflon pucks that lubricate the boom sections (No Grease)
  • Next generation tilting operator’s cab with improved visibility and ergonomics
  • Integral air conditioning
  • Proven six–wheel hydrostatic drive with fully independent hydraulic suspension
  • Four–mode steering controlled from the steering wheel
  • Full–length flat deck with integrated steps, handholds, and guardrails
  • Large swing out engine hood doors for ease of service
  • Access ladders and folding guardrails

Manufacturer’s Website

Click Here

Downloads

Tadano GR1300XL-4


130 US Ton Capacity

Long six-section boom, versatile for transport The versatile Tadano GR-1300XL-4, equipped with a Cummins engine, offers a six-section boom that can extend up to 183.7 ft (56 m) using its reliable telescoping pinning system, giving it the longest boom length of any rough terrain crane in the 130 USt (118 t) weight class. Self-removable counterweights and a compact carrier length of just 28 ft (8.5 m) on a two-axle system mean the GR-1300XL-4 can be transported easily to any job site. Once on the site, Tadano’s on-board ‘Smart Chart’ technology helps to maximize work performance. Other features include asymmetrical outriggers setup, a tiltable cab, and an Eco Mode System to save on fuel consumption and enhance efficiency.

Nominal Capacity @ Radius 130 US Tons @ 8'
Standard Boom 40' - 183.7'
Telescope System Single Cylinder with Pinning System
Attachment - Option 1 33.8'-59.1' (10.3-18.0m) Bi-Fold Jib
Attachment - Option 3 11.8' (3.6m) Heavy Lift (Short) Jib
Max. Tip Height 250' (92m)
Max. Line Pull 21,800 lbs.
Max. Speed (ft per minute) 354 fpm (136m/min)

Key Features

  • HELLO-NET Telematics
  • Eco-Mode engine control system
  • Positive Control Hydraulics
  • Fuel Monitoring
  • Rounded Boom Design for maximum strength and decreased weight
  • Hydraulic offset jib (5-40 degrees)
  • Tilting operator’s cab for improved visibility and ergonomics
  • Asymmetrical extension width of outriggers
  • Electronically controlled, fully automatic transmission
  • Four–mode steering controlled from the steering wheel
  • Self-removable 43,500# counterweight

Manufacturer’s Website

Click Here

Downloads

Tadano 1600XL-3

GR-1600XL pic.png

160 ton | 145 mt

Nominal Capacity @ Radius 160 US Tons @ 8' (145mt @ 2.5m)
Standard Boom 42.8'-200.1' (12.2-45.7m)
Telescope System Single Cylinder with Pinning System
Attachment - Option 1 33.8'-59.1' (10.3-18.0m) Bi-Fold Jib
Attachment - Option 2

(1) or (2) 23' (7m) Lattice Extensions

Attachment - Option 3 11.8' (3.6m) Heavy Lift (Short) Jib
Max. Tip Height 301' (92m)
Max. Line Pull 21,800 lbs.
Max. Speed (ft per minute) 354 fpm (136m/min)

Key Features

  • HELLO-NET Telematics
  • Eco-Mode engine control system
  • Positive Control Hydraulics
  • Fuel Monitoring
  • Rounded Boom Design for maximum strength and decreased weight
  • Hydraulic offset jib (5-40 degrees)
  • Tilting operator’s cab for improved visibility and ergonomics
  • Asymmetrical extension width of outriggers
  • Electronically controlled, fully automatic transmission
  • Four–mode steering controlled from the steering wheel
  • Self-removable counterweight
  • Self-removable outrigger boxes

Manufacturer’s Website

Click Here

Downloads

All Terrain Cranes

All Terrain (AT) cranes feature a multi-axle chassis, crab steering, and all-wheel drive capabilities which make them an excellent choice for both on-road and off-road industrial and construction projects.  Designed to travel at a high rate of speed on public roadways, all terrain cranes combine the mobility of a truck-mounted crane with the versatility of a rough terrain crane.

R. Gingerich Crane has the following all-terrain cranes available for manned rental:

Grove GMK3060L (65ton)


Features

  • 65 US Ton Capacity
  • 31.3-157.5 feet seven-section boom
  • 28.5-49.2 feet bi-fold hydraulic offset swingaway
  • Exclusive MEGATRAK suspension
  • Exclusive MEGAFORM boom design
  • TWIN-LOCK boom pinning system
  • Manitowoc Crane Control System (CCS)

Manufacturer’s Website

Click Here

Downloads

Grove GMK4100B (100-ton)


Features

  • Exclusive MEGATRAK suspension
  • Exclusive MEGAFORM boom design
  • Six-section full power boom
  • TWIN-LOCK boom pinning system
  • EKS-5 LMI system
  • 8 x 6 x 8 drive and steer
  • optional 8 x 8 x 8 drive and steer

Manufacturer’s Website

Click Here

Downloads

Grove GMK5150L (175-ton)


GROVE GMK5150L Any lift. Anywhere. The GMK5150L provides maximum versatility, roadability and strong capacities to give you one of the best five-axle 175-ton cranes available on the market. Features Superior strength and reach Get impressive strength and reach including (13 USt) lifting capacity with (197 ft) boom. The boom can be further extended with an (58 ft) swingaway and one (26 ft) boom extension and / or one (26 ft) jib insert to a maximum length of (111 ft) with up to 50° offset. Convenient transportation logistics Multiple counterweight configurations...

Features

  • 6-section full-power boom
  • New carrier cab
  • Exclusive MEGATRAK suspension
  • Luffing bi-fold swingaway
  • All wheel steering
  • TWIN-LOCK boom pinning system
  • Automatic Transmission
  • Exclusive MEGAFORM boom design
  • New cab design

Manufacturer’s Website

Click Here

Downloads

Grove GMK5200-1 (240-ton)

5200 photo.png

The GMK5200-1 puts power and performance to work for you with high capacities on a five-axle all-terrain crane and 210 ft main boom. Logistic benefits due to interchangeable counterweight slabs and self-rigging auxiliary hoist. The 59 ft swingaway with boom inserts for a maximum length of 112 ft and optional heavy duty jib give the 5200-1 great versatility.

Features

  • Exclusive MEGATRAKTM suspension
  • Exclusive MEGAFORMTM boom design
  • Six-section (210') main boom
  • TWIN-LOCK boom pinning system
  • Hydraulic power luffing boom extension

Manufacturer’s Website

Click Here

Downloads

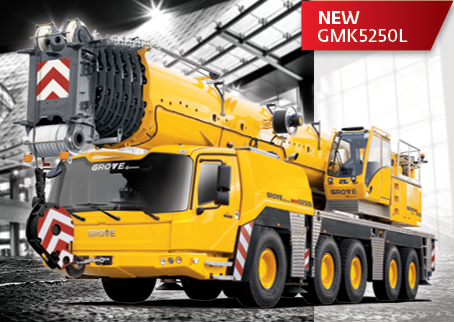

Grove GMK5250L (300-ton)

work1198 (5).jpg

The most powerful and versatile five-axle crane in the market, the new GMK5250L lets you dominate the competition with performance capabilities that include highest-rated capacity, best load chart in its class, best maneuverability, quickest set-up time and most operator comfort and convenience in its class.

Features

  • Exclusive MEGATRAKTM suspension
  • Exclusive MEGAFORMTM boom design
  • Seven-section (230') main boom
  • TWIN-LOCK boom pinning system
  • Hydraulic power luffing boom extension

Manufacturer’s Website

Click Here

Downloads

Grove GMK6350 (350-ton)


Features

  • Exclusive MEGATRAK suspension
  • Exclusive MEGAFORM boom design
  • Five-section full-power boom
  • All wheel steering
  • TWIN-LOCK boom pinning system
  • EKS-4 LMI system

Manufacturer’s Website

Click Here

Downloads

Grove GMK7550 (550-ton)


Grove’s flagship all-terrain crane is a beast. The GMK7550 is a seven-axle crane that has a 550 ton maximum capacity. Standard TWIN-LOCK boom length is 230 feet, which can stretch to 430 feet with extensions and attachments. It is also outfitted with an impressive array of features, including a stowing crane cab (which swings hydraulically to the right for operation), an optional eighth axle, and a state-of-the-art control console with EKS5 and Electronic Crane Operating System (ECOS), combined with a dual-screen display.

Features

  • MegaWingLift attachment for increased capacity
  • Exclusive MEGATRAK suspension
  • Exclusive MEGAFORM boom design
  • Five-section full-power boom
  • All wheel steering
  • TWIN-LOCK boom pinning system
  • EKS-5 LMI system

Manufacturer’s Website

Click Here

Downloads

Looking to Rent a Hydraulic Crane in Central Illinois?

R. Gingerich Crane welcomes the opportunity to serve your crane service or crane rental needs.  Our complete crane services include crane sizing, pre-lift planning, transportation to and from the jobsite, assembly and disassembly, and 24/7 emergency on-site service.

Call us today at 309-263-7335 for a free consultation and pricing estimate.
